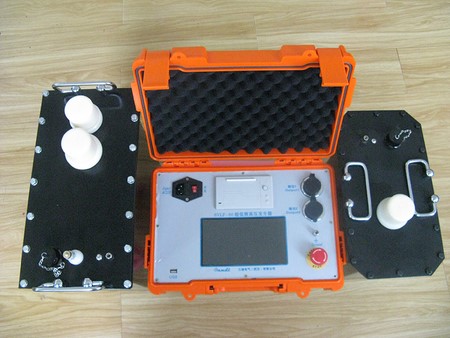

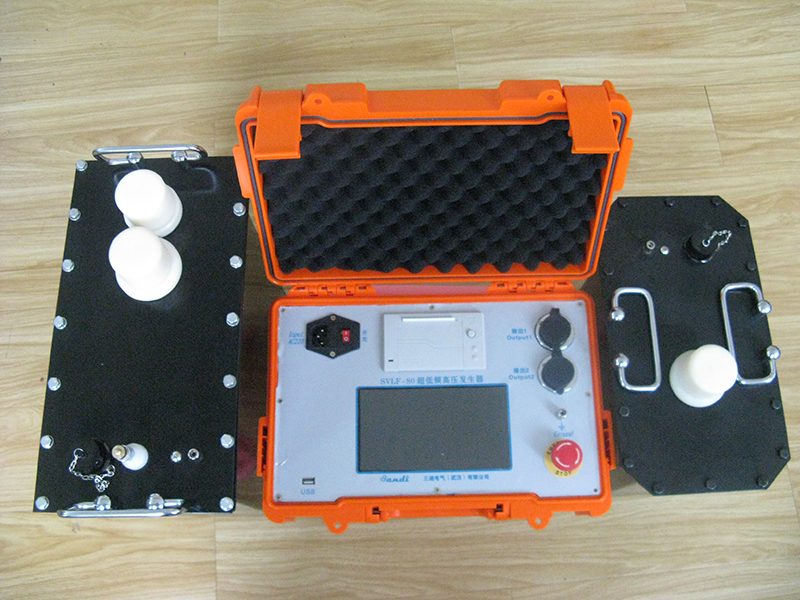

VLF Cable Tester

Portable high-voltage test system using very low frequency technology for determining the insulation quality of cables

The very-low frequency insulation testing is actually an alternative method to the power frequency withstand voltage test. Using a 0.1Hz very-low frequency withstand voltage test not only has the same effectiveness but also significantly reduces the volume and weight of the equipment. The capacity theoretically is about one five hundredth of the power frequency and the operation is simple.

Request a Quote

Features

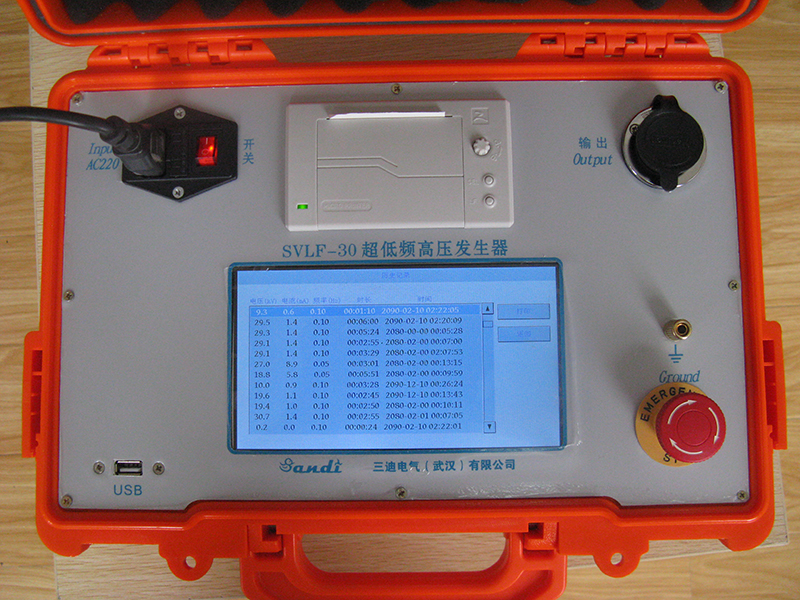

VLF cable tester comes with digital frequency conversion technology, microcomputer control, and full automation of processes such as boosting, lowering, measuring, and protection.
VLF cable tester features overvoltage protection, high and low side overcurrent protection, with an action time ≤10ms.
The controller is connected to the high-voltage generator at low voltage, ensuring safe photoelectric control.
A high and low voltage closed-loop negative feedback control circuit ensures no capacitance rise effect on output.
Multiple frequency options of 0.1Hz, 0.05Hz, and 0.02Hz allows for a wide testing range.

Specifications

Voltage
Voltage (peak value)	0-80kv
sensitivity	0.1kV
accuracy	1 %
Waveform
Waveform	ultra-low frequency sine wave
Voltage type	DC voltage
Voltage positive and negative peak error	≤3％
Voltage wave distortion	≤1％
Frequency range	0.1 Hz 0.05 Hz 0.02 Hz
Load capacity (VLF test)	10nF–10μF
Current
Measuring range	0–70 mA
Sensitivity	1μA
Accuracy	1 %
Dissipation Factor Measurement
VLF sine wave voltage range	1–80 kVrms
Load range	50nF–5μF
Resolution	1×10-6
Accuracy	1×10-3
Measuring range	1×10-3–21000×10-3
Measuring frequency	0.1Hz
Capacitance	50nF-5μF
Resistance	30MΩ-10GΩ
Working Conditions
Usage	indoor/outdoor
Temperature	-10℃～+40℃
Humidity	≤85％RH
Basic Information
Dimensions	48×28×58cm
Weight	45kg
Power supply	50Hz, 60hz
Voltage	220V±5%, 50±5Hz
