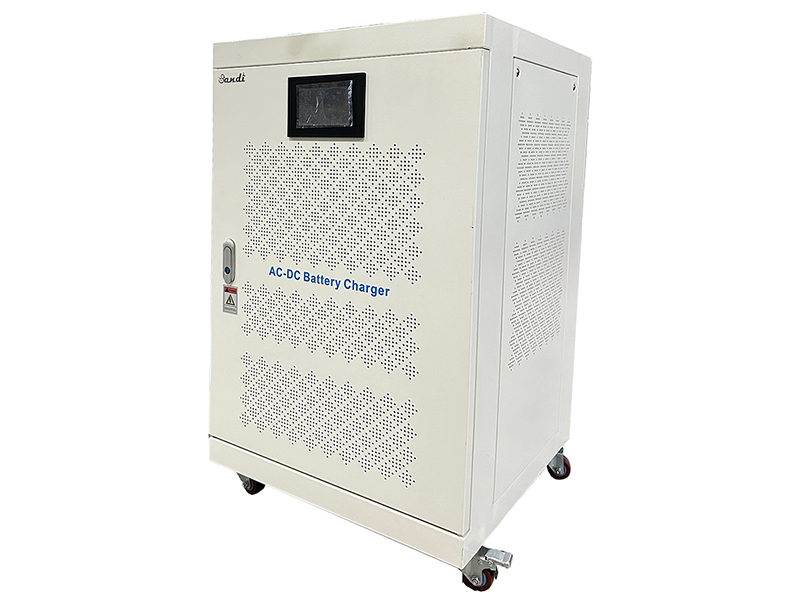

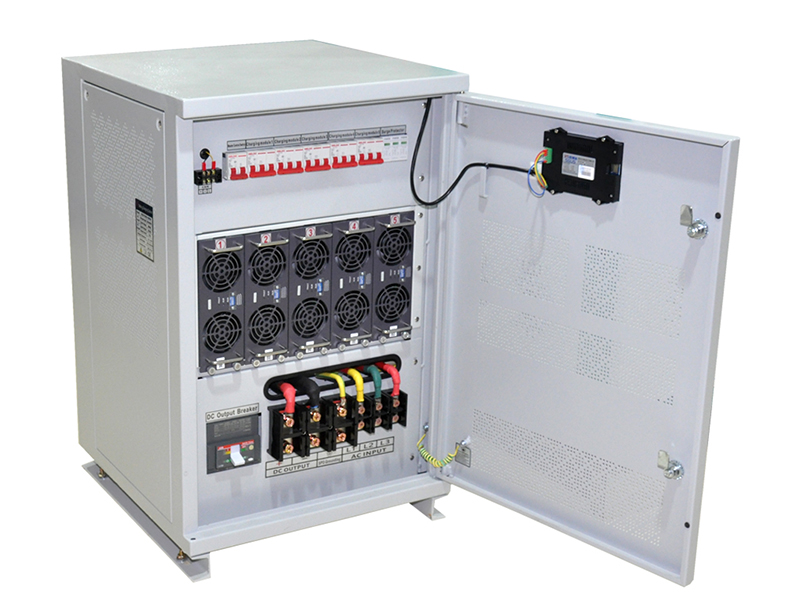

SD75060S AC/DC single-phase power supply features both single-phase AC input and DC voltage input, with a DC output voltage range from 50Vdc to 750Vdc. It offers constant power output as low as 350Vdc, with an output power of 21kW, making it a charging module with internationally leading capabilities.
AC/DC single-phase power supply is widely used in various electronic devices, power systems, and industrial production, such as computers, communication equipment, and industrial control devices.
| Model | SD750160S | |
| Working Environment | Working temperature | -40℃~+75℃ (derating for above +55℃) |
| Storage temperature | -40℃~+80℃ | |
| Relative humidity | ≤95%RH, non-condensing | |
| Cooling method | Fan-cooled | |
| Altitude | 2000m (derating for above 2000m) | |
| AC Input | Input voltage | 220VAC(L+N+PE) |
| Max. input current | ＜256A | |
| Frequency | 45Hz~65Hz | |
| Power factor | ≥0.99 | |
| Efficiency (full load) | ＞95% | |
| THD | ＜5% | |
| DC Output | Output power | 56kw |
| Voltage | 100VDC-750VDC, adjustable with 0.1VDC step | |
| Rated output voltage | 350VDC-750VDC | |
| Output current | 1-160A (can be set) | |
| Ripple | ＜±5% | |
| Voltage stabilization accuracy | ＜±5% | |
| Current stabilization accuracy | ≤±1% (output load 20%~100% of rated range) | |
| Alarm & Protection | Input overvoltage/ under voltage protection | Automatic power off protection, and automatic recovery after input voltage being stabilized |
| Output overvoltage protection | Automatic power off and lock, re-power on for recovery | |
| Overcurrent / short circuit protection | Automatic power off and lock, re-power on for recovery | |
| Overheating protection | Automatic power off protection, and automatic recovery after temperature being stabilized | |
| Dimensions & Weight | Dimensions (W×D×H) | 475×740×297mm |
| Weight | 36kg | |
