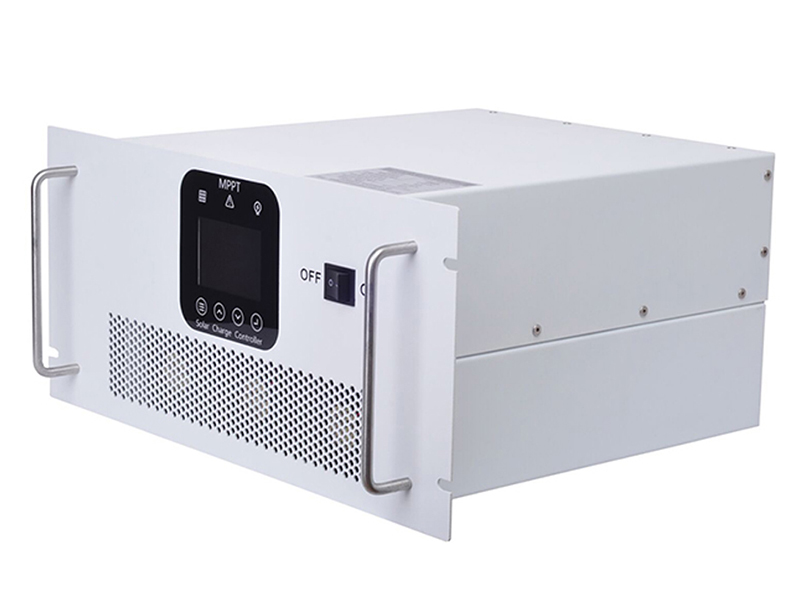

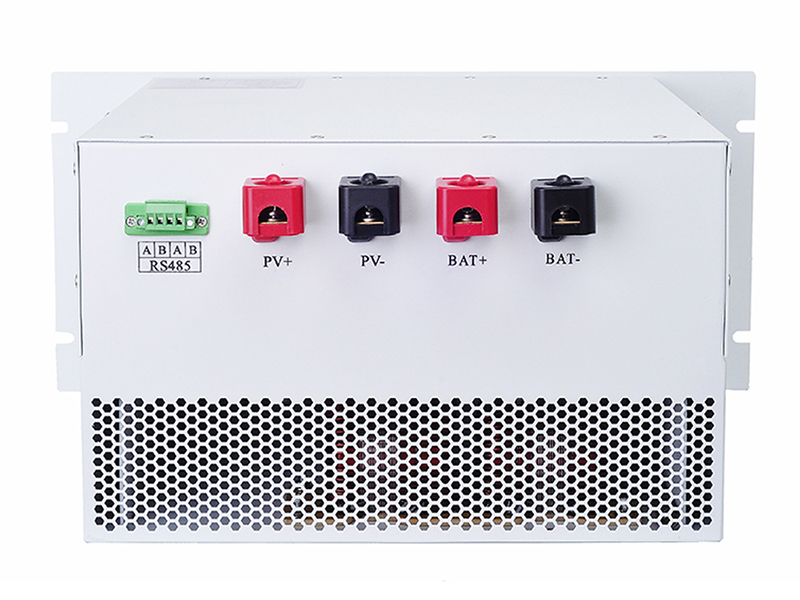

Rack Mount MPPT Solar Charge Controller

Maximum power point tracking (MPPT) controller

Rack mount MPPT solar charge controller is an intelligent photovoltaic controller designed specifically for off-grid photovoltaic power generation systems. The product integrates photovoltaic panels, charge controllers, inverters, and battery management systems, and can automatically control the connection and disconnection of solar panels based on battery voltage changes.

Request a Quote

Applications

Rack mount MPPT solar charge controller is primarily used in large-scale off-grid solar power station systems, distributed energy systems, remote area power supply, and mobile energy systems such as solar cars.

Features

Advanced MPPT tracking algorithm allows for a tracking efficiency of no less than 99%
Rack mount MPPT solar charge controller uses IGBT as an electronic switch, multi-phase synchronous rectification technology to improve equipment stability.
Advanced PID algorithm ensures a more precise battery energy management system.
Four-stage charging mode maximizes the utilization of PV modules and batteries.
Secondary protection function ensures that the battery is not damaged by overcharging in any circumstances
Dual-loop control of voltage and current allows for setting of current-limiting charging.
Fully enclosed air duct structure design offers high protection level and high-speed intelligent fan cooling.
Power generation statistics and real-time power curve functions allows for monitoring the system power generation status at any time.
Standard Modbus communication protocol based on the RS-485 communication bus.

Specifications

Electrical Parameters
Rated voltage	192V-398V	400V-480V
Rated charge current	50A 60A 80A 100A
Charging technology	MPPT(maximum power point tracking)
MPPT efficiency	>99.9%
Max. input voltage (VOC)	800V	850V
MPPT starting voltage	Battery voltage +20V
No-load loss	< 0.5W
Display	Color LCD display screen + touch buttons
Language	English/Chinese
Protection functions	Input reverse polarity, overvoltage, short circuit, overheating, etc.
Ambient temperature	-25°C +55°C
Altitude	Power derating for above 2000m
Degree of protection	IP32 (indoor)
Noise	< 50dB
Cooling method	Pure aluminum heat sink + high speed fan
Dimensions	500×384×228mm
Net weight	27kg
Packaging	Cardboard box
Charging Parameters
Rated voltage	2V	N	N stands for different rated voltages, the variable for battery charging voltage is based on the value of 2V. For example, if the rated voltage is 360V, the overvoltage disconnect parameter value is 360V/2V*2.65V=477V.
Overvoltage disconnect	2.65V	=2.65*N/2
Overvoltage reconnect/complete charge	2.5V	=2.5*N/2
Equalization charge	2.4V	=2.4*N/2
Float charge	2.3V	=2.3*N/2
Equalization charge recovery	2.2V	=2.2*N/2
Under voltage alarm	1.75V	=1.75*N/2
Equalization charge timing	120 min
Charge current limiting	＜ rated current
All charging parameters are adjustable by users based on the battery properties The charging parameters for lithium battery need to be customized according to the properties of the lithium battery Charge current limiting can be set by users with a value less than rated current
