Hybrid Energy Storage System (HESS)

Diesel-battery hybrid power system by operating in a complementary way
Hybrid Energy Storage System
Hybrid Energy Storage System Hybrid Energy Storage System

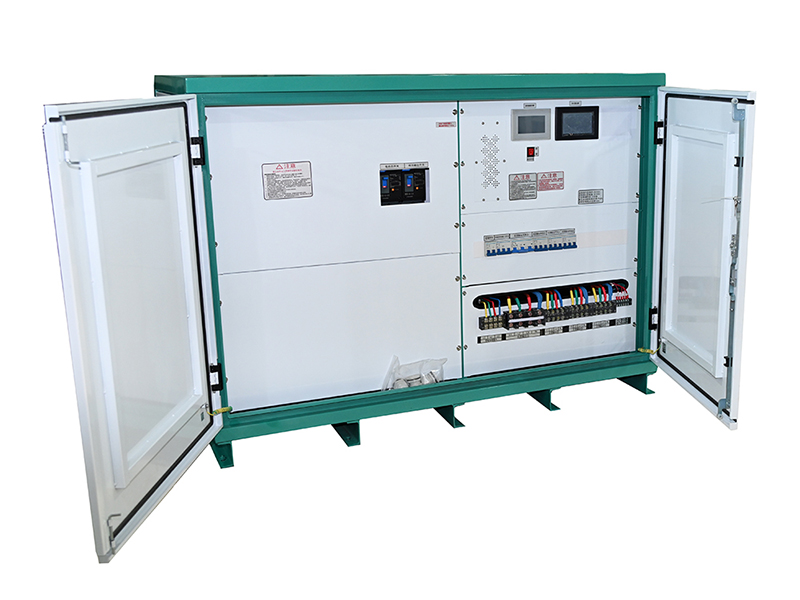

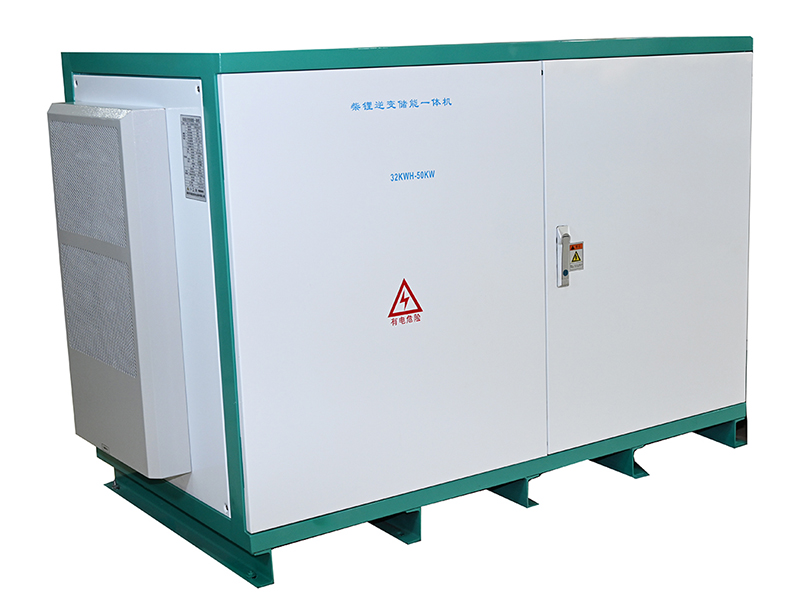

Hybrid energy storage system combines grid frequency inverters, AC chargers or solar chargers, LiFePO4 batteries, and BMS in one system. Diesel-battery hybrid power system can be charged using solar energy or mains electricity, merging diesel generator and lithium battery technologies to provide efficient and stable power output while reducing energy consumption and maintenance costs.

Applications

Hybrid energy storage system is primarily used in outdoor construction sites without electricity, emergency rescue operations, logistical support, etc.

Request a Quote
Features
  • Diesel-battery hybrid power system is equipped with a 32kWh lithium battery that can be pre-charged to save fuel, a 20kW AC/DC charger, a 50kW grid frequency inverter, and a 600W industrial air conditioning system.
  • An outdoor protection rating of IP45 provides excellent waterproof and dustproof performance.
  • Wide operating temperature range: -20 to 45 ℃.
  • Simultaneous charging and discharging of the battery and load are supported.
Specifications
Model SPVLI-61kWh-INV30kW-CHR40kW
Battery Module Battery type LiFePO4
Rated voltage 307V
Rated energy capacity 61kWh
Charge voltage 345V
Discharge cut-off voltage 240V
Communication CAN
AC/DC Battery Charger Input voltage 260~530VAC (three phase) 180~260VAC (single phase)
Output voltage 50~750VDC
Charge current 50A/100A
Rated power 20kW*2 (three phase) or 7kW*2 (single phase)
Pure Sine Wave Inverter Rated battery voltage 307VDC
Output waveform Pure sine wave
Output power 30kW
Output voltage 380VAC three phase 4-wire
Output current 45.4A
Overload ability 150%, 5s
Protection functions Input reverse polarity, under voltage, overvoltage, overcurrent, short circuit, overheating
Enclosure Degree of protection IP20 (indoor)/IP45(outdoor)
Dimensions (W×D×H) 1500×850×1100mm (similar size to 50kW diesel generator in the market)
