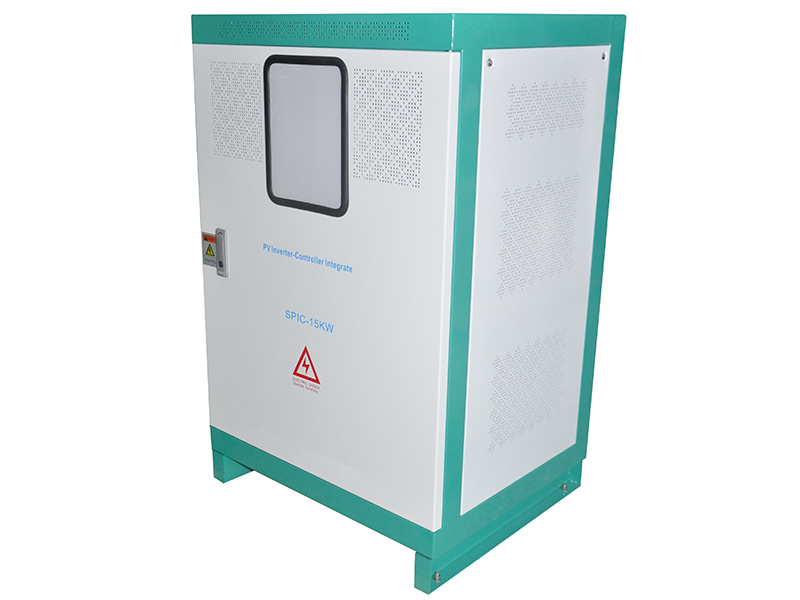

Solar Controller/Inverter, SPIC-15kW

Integration of solar inverter and solar charge controller

Solar controller/inverter can be widely used in various large-scale solar power generation applications such as homes, public lighting, mining, border defense, islands, pastoral areas, commercial and industrial sectors.

Request a Quote

Features

Solar controller/inverter utilizes Mitsubishi's 6th generation IPM intelligent module.
Solar controller/inverter comes with the American TI central processor DSP28335 chip.
A modular and plug-and-play design enables easy maintenance, reducing the hidden costs of machine failures and repairs.
Dual-mode startup selection function allows for step-down and frequency conversion startup settings through the LCD screen.
The isolated transformer design provides complete electrical isolation between input and output, with molded case circuit breakers for both.
Built-in grid frequency isolation transformer is capable of handling equipment with strong impacts such as motors, pumps, and air conditioners. Simultaneously, DC busbars and AC busbars are completely isolated to avoid interference between AC and DC.
LCD+LED display shows various data and fault codes, facilitating quick fault diagnosis and repair guidance for users.
Advanced PID algorithm allows for more precise battery energy management system.
Three-stage charging method maximizes the utilization of photovoltaic modules and battery capacity.
This solar controller/inverter is certified by European CE (EMC and LVD) and ISO9001.

Specifications

Model	SPIC-5kW ~ 500kW
Isolation mode	Low frequency transformer
Battery Input
Rated voltage (VDC)	48/96/192/240/360/384/480/600V
Solar Controller Input
Battery pack voltage	48/96/192/240/360/384/480/600V (optional)
Max. input voltage of PV array	＜850V
Input string	1 string
Max. charge current	50A,80A,100A,150A,200A, 300A (optional)
Charging method (VDC)	Fast charge, equalization charge, float charge
AC Output
Rated power	5kW-500kW
Rated voltage	110/120/220/230/240/380/400/415/440/480VAC (optional)
Output frequency	50/60Hz±0.05
Output phase	Single phase or three phase
Output waveform	Pure sine wave
Waveform distortion rate (THD)	≤3% (linear load)
Dynamic response (0 to 100% load)	5%, ≤50ms
Power factor	0.99
Efficiency	＞93%
Overload ability	150%, 10sec
Insulation strength (input and output)	1500VAC, 1min
Protection
Protection functions	Input reverse polarity, under voltage, overvoltage, output overcurrent, short circuit, overheating
Display screen	LCD+LED
Operation mode	Continuous operation
Cooling method	Intelligent fan-cooled
Short circuit / overload protection	No automatic recovery, need to restart the inverter
Working Environment
Degree of protection	IP20 (indoor)
Altitude	≤3000 (derating for above 1000m)
Working temperature	-20～+50℃
Relative humidity	0~95% non-condensing
Noise (1 meter)	≤60dB
