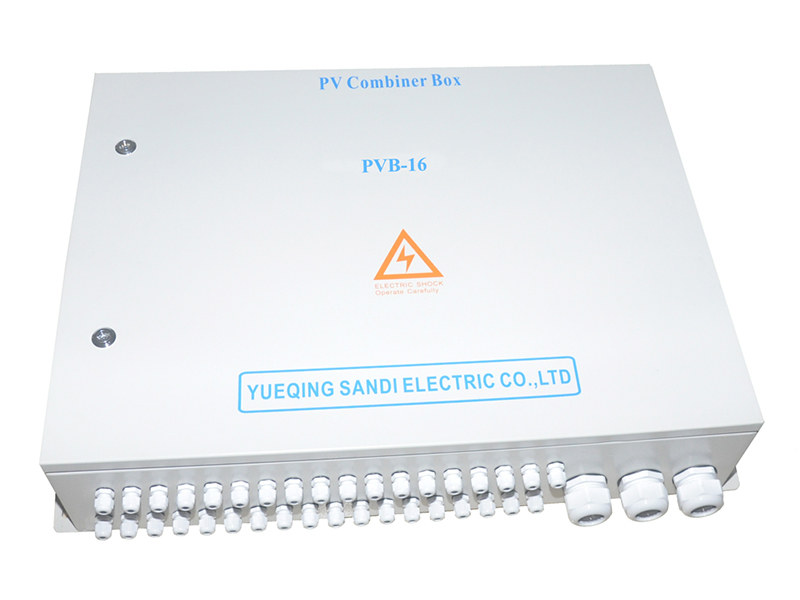

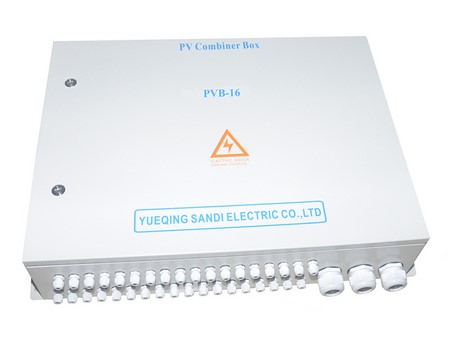

16-String PV Combiner Box

1000VDC solar combiner box 16 inputs /1 output

16-string PV combiner box can consolidate 16 circuits in the PV system and is made of PVB material, making it cost-effective and favored by many customers. In addition to its function of consolidating photovoltaic currents, our PV combiner box also features a series of comprehensive protection functions, including overcurrent protection, overvoltage protection, and lightning protection.

Request a Quote

Features

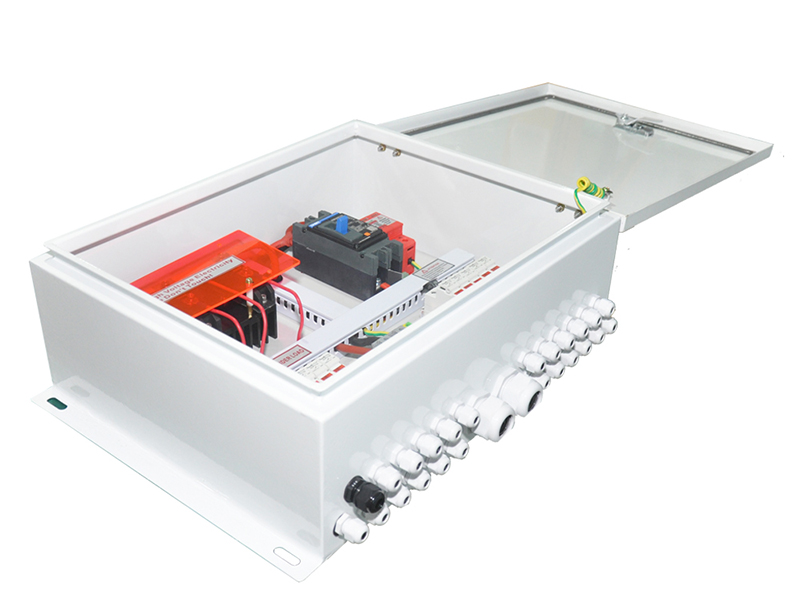

16-string PV combiner box can accommodate up to 28 strings of PV panels, with a maximum rated current of 15A for a single input array.
Wide DC voltage input, with the highest input voltage of the PV array reaching 1000VDC.
Meets indoor and outdoor installation requirements, with an IP65 protection level.
PG cable connector input allows for convenient and safe wiring.

Specifications

Model	PVB-16/1
PV Array Input
Max. PV array voltage	1000VDC
Number of PV input string	16 string
Rated current for each string	15A
Max. output current	240A
Overcurrent protection for each string	yes
Positive and negative cable size	4mm2
Output string	1 string
Standard Accessories
DC output circuit breaker	250A/3P
PV lightning protection module	40KA/1000V/2P
Reverse polarity protection	Anti-reverse protection module
Working Environments
Degree of protection	IP65
Altitude	≤3000m
Working temperature	-15～+55℃
Storage temperature	-25～+85℃
Box material	Cold-rolled steel sheet with powder coated
