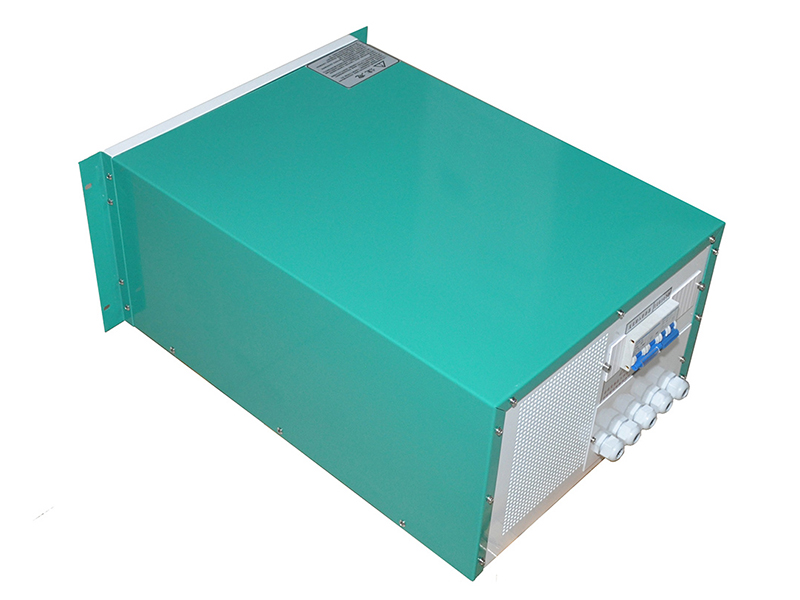

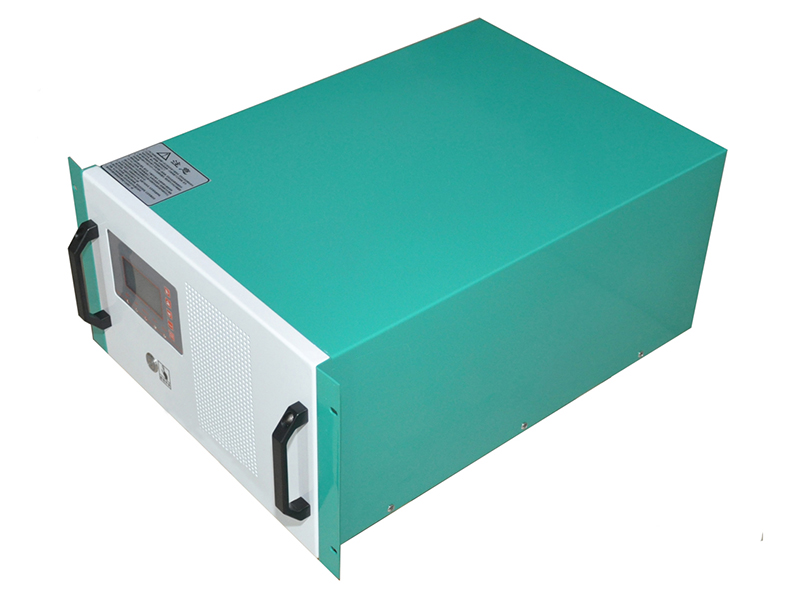

Car Power Inverter

Pure sine wave inverter used in vehicles for converting DC into AC power

Car power inverter is used to convert the DC power supply of the vehicle into AC power. This inverter adopts a power frequency isolation design, making it convenient to use standard AC electrical appliances and equipment in vehicles.

Request a Quote

Features

Car power inverter adopts Mitsubishi's sixth-generation IPM module, with perfect protection functions and a designed service life of over 15 years.
Dual-mode start selection function, voltage reduction start and frequency conversion start settings can be made through the screen.
Output frequency can be set independently for different load types.
Pure sine wave output offers a transient response time of less than 50ms.
Isolation transformer design allows for complete electrical isolation between input and output, with plastic shell circuit breakers on both input and output.
SVPWM space vector algorithm offers a conversion efficiency of over 93%.
This power inverter has passed European CE (EMC and LVD), ISO9001, and CCS certificates.

Applications

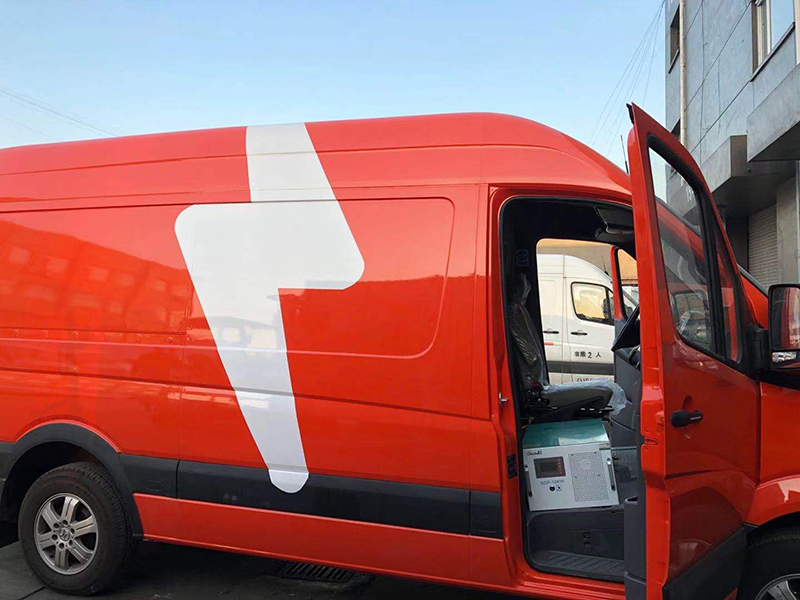

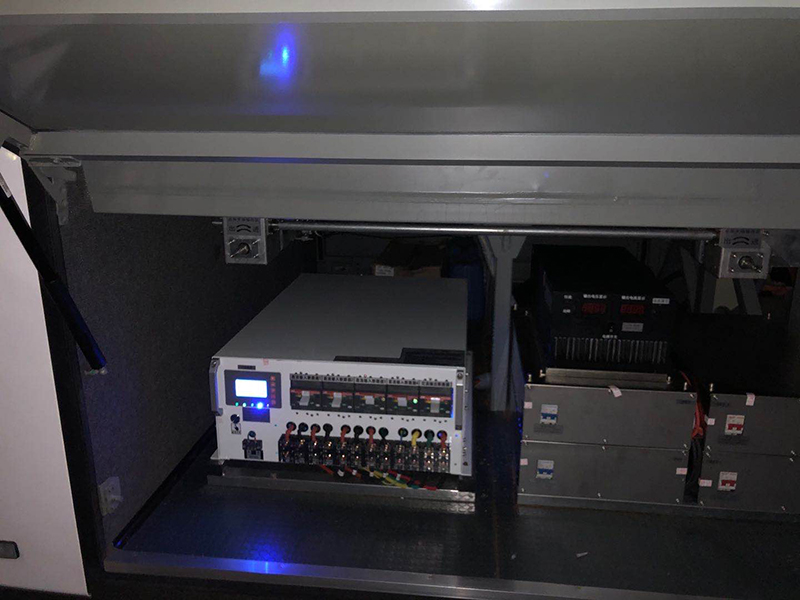

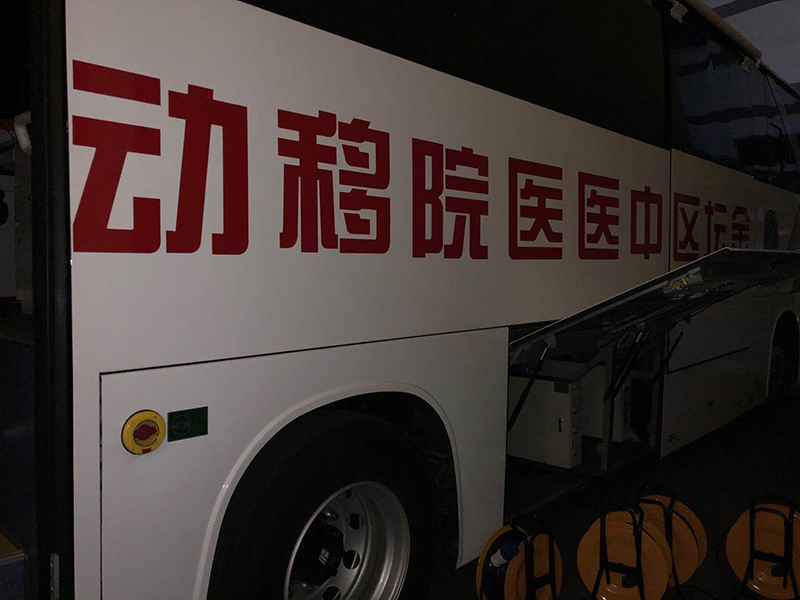

Provide auxiliary AC power for new energy vehicles, electric buses, and medical buses.
Provide power for auxiliary AC equipment on electric vehicles.

Specifications

Model	SDP-5kW~500kW
Isolation mode	Low frequency transformer
Power input	DC input
Rated voltage (VDC)	48V~850VDC (customizable)
Power output	AC output
Power range	5kw~500kW
Voltage range	Single phase 220/230/240V or Three phase 380V/400/415/480V
Output frequency	50/60HZ±0.05
Output waveform	Pure sine wave
Waveform distortion rate (THD)	3% (linear load)
Dynamic response (0 to 100% load)	5%, ≤50ms
Power factor	0.99
Efficiency	＞93%
Overload ability	150%, 10sec
Protection
Protection functions	Input reverse polarity, under voltage, overvoltage, output overcurrent, short circuit, overheating
Display screen	LCD+LED
Operation mode	Continuous operation
Cooling method	Fan cooled
Short circuit / overload protection	No automatic recovery, need to restart the inverter
Working Environment
Degree of protection	IP20
Altitude	≤3000m (derating for above 1000m)
Working temperature	-20～+50℃
Relative humidity	0~95% non-condensing
Noise (1 meter)	≤60dB
